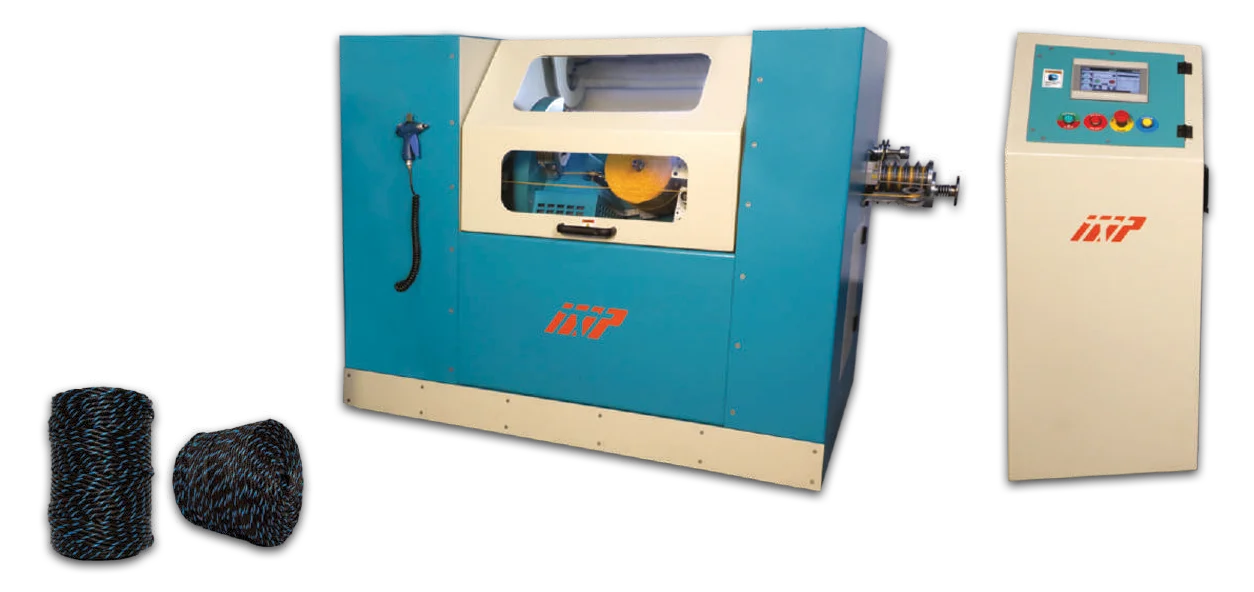

Inflow twister MTP/ie-100


NOTE : Also available model MTP / IE-150 up to 1,50,000 denier & MTP / IE-200 up to 2,00,000 denier.
  • Model
  • MTP / IE-100
  • Denier Range
  • 7,500-1,00,000
  • Flyer Speed(RPM)
  • Max. 2500
  • Twist Range
  • 20 to 120 TPM
  • Lay
  • S and Z
  • Twist Per Minute
  • Twice the flyer speed
  • Feeding Package
  • Outside
  • Take up capacity
  • 10 Kgs. Max.
  • Take up package size
  • 300 mm Dia x 300 mm Traverse 60 mm ID* (*As per requirement)
  • Motor
  • 8 kw, A.C. Motor
  • Dimension
  • Length Width Height
    77 38 42
  • Weight
  • 1000 Kgs.(Approx.)

PRODUCTION CAPACITY (On 100% Efficiency)

  • Denier
  • Prod. (Kg/Hr)
  • RPM (Max)
  • TPM
  • 20,000
  • 22.2
  • 2500
  • 30
  • 50,000
  • 40.0
  • 1800
  • 30
  • 1,00,000
  • 66.0
  • 1500
  • 30

Key Features

  • Direct cheese packages size of 150mm x 150 mm OR 200mm x 200mm Or 250mm x 250mm OR 300MM x 300MM with tube Or without tube.
  • Winding tension & fine pitch adjustment system.
  • Pneumatic door opening system.
  • User friendly touch screen display with PLC control.
  • All parameters will be shown on display.
  • RPM/Twist type can be set by touch screen display.
  • Weight & meter set point.
  • Door location warning.
  • Machine lubrication warning.
  • A.C. Drive fault alaram indication.
  • Production data can be stored to analyze and review.
  • Wi-Fi connectivity system for computer
  • Daily, weekly & monthly report system.(Direct save in excel format)

Optional Feature

  • Pneumatic spindle for removal of final package.
