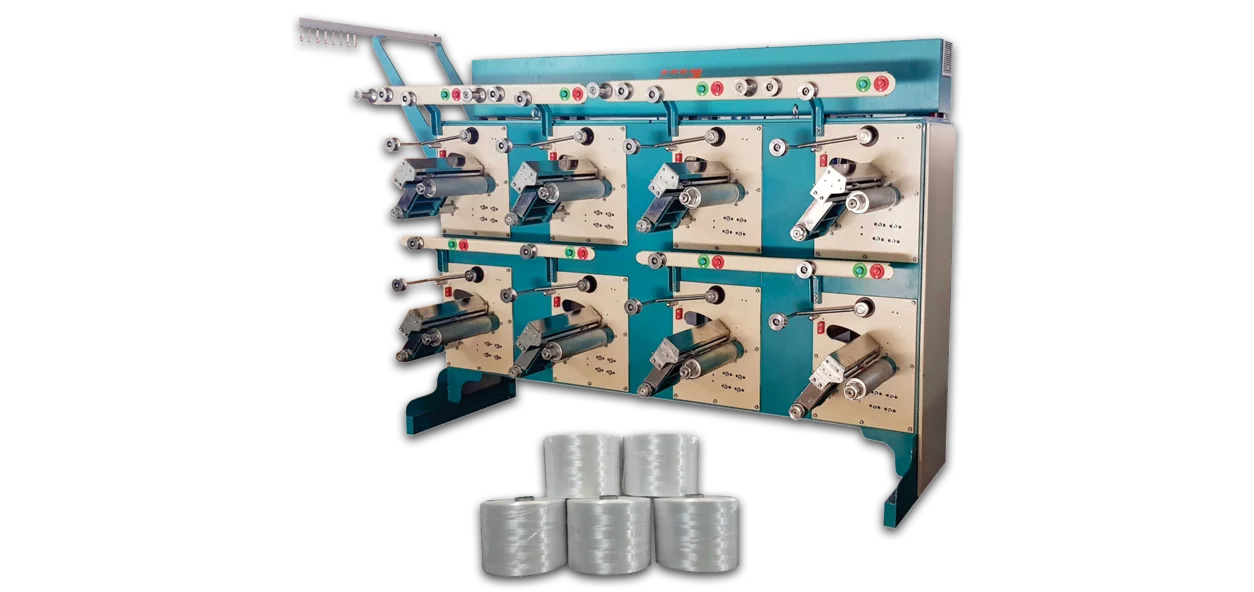

Cheese Winder MTP / CW-300

Home     Cheese Winder MTP / CW-300
cheese-winder-mtp-cw-300

Technical Specification

MODEL MTP / CW-300
PACKAGE SIZE 400 mm Dia x 300 mm Tra. x 82 mm ID on Tube
DENIER RANGE 5000 to 45000 denier
WINDING SPEED 160 MPM Max.
WINDING TYPE Cheese winding
SPEED CONTROL Electronics
TRANSMISSION Timing belt.
MOTOR POWER 0.75 KW with AC Drive.
WEIGHT 1175 kgs. (8 Position)
DIMENSION (LxWxH) 7'7" X 3'2" X 5'5" (8 Position)

Key Features :

Rope Icon

Electric torque control.

Rope Icon

Precision cross winding.

Rope Icon

Online with extruder.

Rope Icon

Easy to operate.

Rope Icon

A.C. frequency drive.
