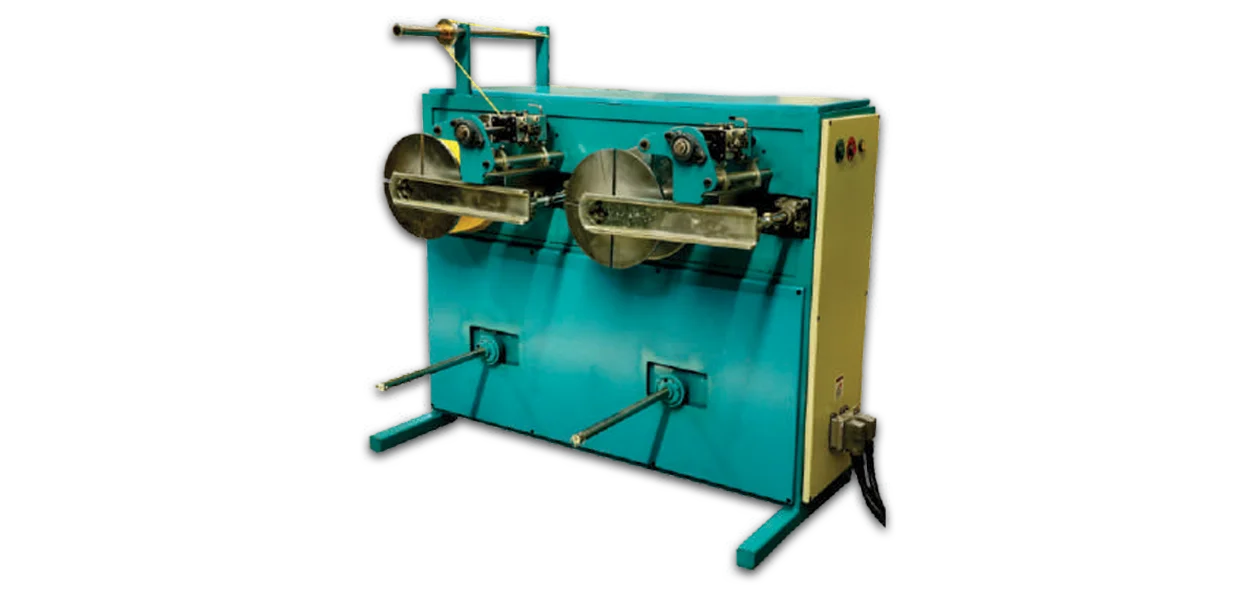

Coiling Machine MTP / CL-2T
(2 STATION)

Home     Coiling Machine MTP / CL-2T (2 STATION)
coiling-machine

Technical Specification

MODEL MTP / CL-2T
ROPE RANGE 2mm to 6mm
COIL SIZE MAX. 4 Kgs.
MOTOR POWER 0.75 KW, Torque Motor
TRAVERSE SYSTEM Auto adjustable
NUMBER OF HEADS 2
NUMBER OF MOTORS 2
DIMENSION (LxWxH) 5'0" x 4'0" x 4'3"
WEIGHT 250 Kgs.

Key Features :

Digital length counter meter.

Easy to operate.

Low and easy maintenance

Pneumatic head operating & Closing System
