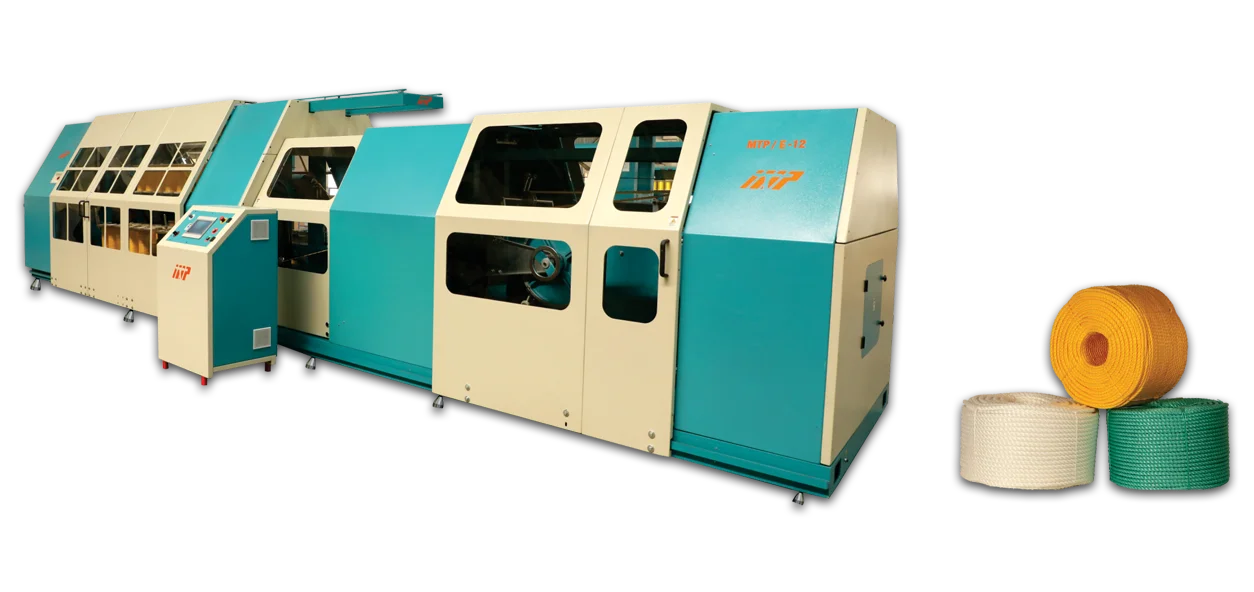

| MODEL | MTP / E-12 |
|---|---|
| ROPE RANGE | 12mm to 24mm |
| STRAND FLYER RPM | Max. 500 |
| ROPE FLYER RPM | Max. 250 |
| TWIST RANGE | 7 to 32 TPM |
| TWIST PER MINUTE | Twice The Flyer Speed |
| ROPE LAY | Z |
| TWIST IN STRAND | Adjustable |
| PAY OFF PACKAGE SIZE | 250 mm Dia. X 300 mm Tra. |
| TAKE UP CAPACITY | 60 Kgs. (Approx) |
Anti twisting unit.
User friendly touch screen display with PLC control.
All parameters will be shown on display.
RPM/TPM & twist factor adjustment by display.
Weight & Meter set point.
Denier & twisting calculator in display.
Door location warning.
Machine lubrication warning.
A.C. drive fault alarm indication.
100 program memory storage facility.
Daily, weekly & monthly report system. (Direct save in excel format)
Electrical Take up system
Direct Coiling Head
Feeding capstan mechanism
Wi-Fi connectivity system for computer.
Ele.Wire hoist for removal of final package
Rope Lay S & Z.
| ROPE SIZE | PROD. (KG/HR.) | TPM | RPM (MAX) | GRM/MTR |
|---|---|---|---|---|
| 12mm | 87.20 kg | 22.52 | 250 | 65.45 |
| 14mm | 138.41 kg | 19.31 | 250 | 89.09 |
| 16mm | 206.68 kg | 16.89 | 250 | 116.36 |
| 18mm | 264.73 kg | 15.02 | 225 | 147.27 |
| 20mm | 363.37 kg | 13.51 | 225 | 181.82 |
| 22mm | 429.26 kg | 12.29 | 200 | 220.00 |
| 24mm | 417.05 kg | 11.26 | 150 | 261.82 |
| AVAILABLE MODELS | MTP/E-12-360 | MTP/E-12-480 |
|---|---|---|
| Motor Capacity | 22 KW | 22 KW |
| Number of Strand | 3 Ply | 4 Ply |
| Number of pay off package | 20 x 3 = 60 | 20 x 4 = 80 |
| Dimension (L x W x H) | 33' 5" x 7'3" x 7'5" | 33" 5" x 7'3" x 7'5" |
| Weight (Approx.) | 7000 Kgs. | 7500 Kgs. |
