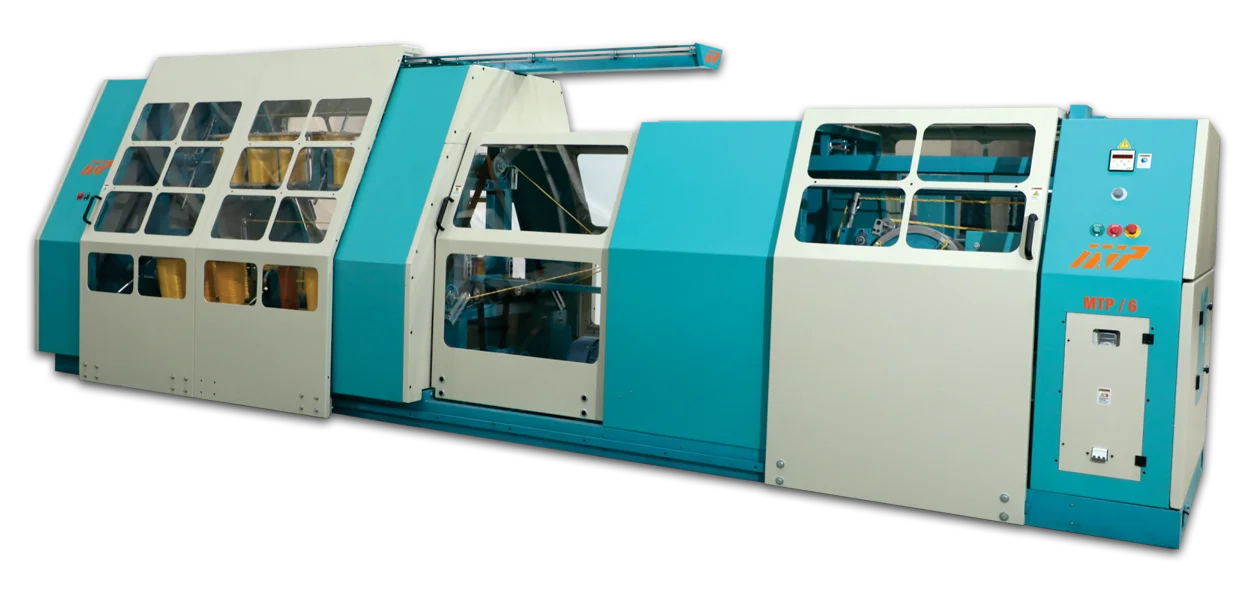

| MODEL | MTP / 8 |
|---|---|
| ROPE RANGE | 8 mm to 16 mm |
| STRAND FLYER RPM | Max. 900 |
| ROPE FLYER RPM | Max. 450 |
| ROPE LAY | Z |
| TWIST RANGE | 15 to 45 TPM |
| TWIST IN STRAND | Adjustable |
| PAY OFF PACKAGE SIZE | 250 mm Dia. × 300 mm Tra. |
| TAKE UP CAPACITY | 57 Kgs. (Approx) |
Anti twisting unit
Power transmission by timing belts.
Digital length counter meter.
Door sensor.
Take up output on M.S. bobbin.
A.C. frequency drive
Feeding capstan mechanism
Direct coiling head.
Ele. Wire hoist for removal of final package
Rope Lay S & Z
| ROPE SIZE | PRODUCTION (KG/HR) | TPM | RPM (MAX) | GRM/MTR |
|---|---|---|---|---|
| 8mm | 46.50 kg | 33.78 | 450 | 29.09 |
| 10mm | 90.80 kg | 27.03 | 450 | 45.45 |
| 12mm | 139.50 kg | 22.52 | 400 | 65.45 |
| 14mm | 193.77 kg | 19.31 | 350 | 89.09 |
| 16mm | 248.01 kg | 16.89 | 300 | 116.36 |
| SPECIFICATIONS | MTP/8-348 | MTP/8-464 |
|---|---|---|
| Motor Capacity | 15 KW | 15 KW |
| Number of Strand | 3 Ply | 4 Ply |
| Number of pay off package | 16 × 3 = 48 | 16 × 4 = 64 |
| Dimension (L × W × H) | 27'5" × 7'2" × 7'2" | 27'5" × 7'2" × 7'2" |
| Weight (Approx.) | 6000 Kgs. | 6500 Kgs. |
