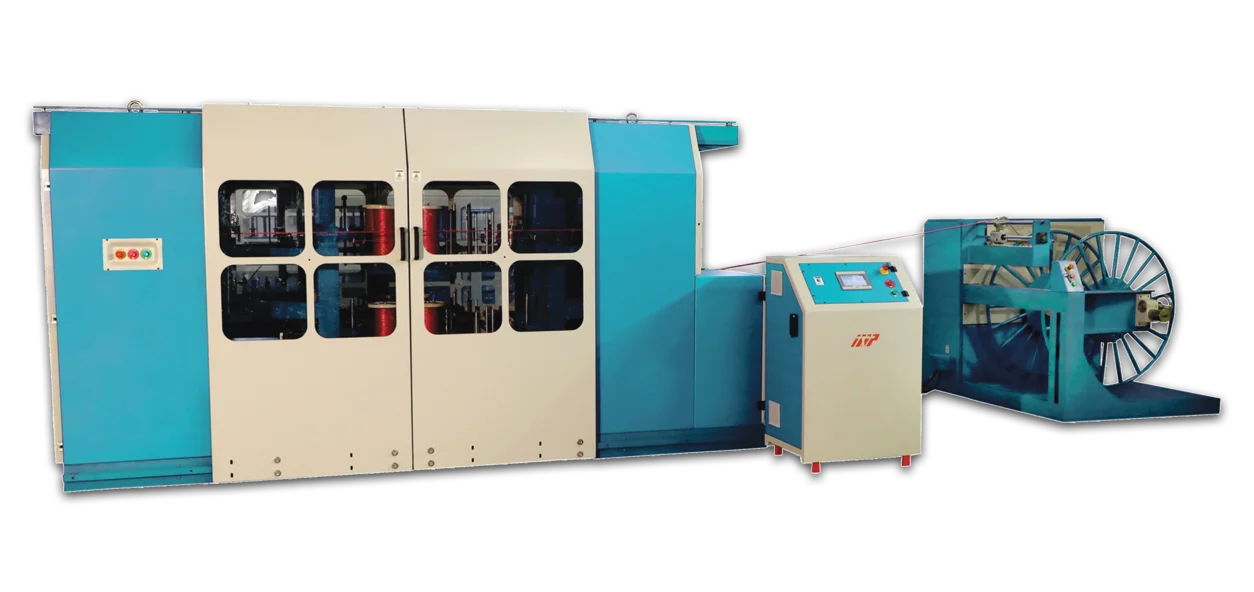

MODEL | MTP/2E |
---|---|
ROPE RANGE | 2mm to 6mm |
TWIST RANGE | 40 to 150 TPM |
STRAND FLYER RPM | Max. 2400 |
ROPE FLYER RPM | Max. 1200 |
ROPE LAY | Z |
TAKE UP CAPACITY | Infinite |
TWIST IN STRAND | Adjustable |
PAY OFF PACKAGE SIZE | 250 mm Dia. × 300 mm Tra. (2 Package Per Ply.) 400 mm Dia. × 300 mm Tra. (1 Package Per Ply.) |
User friendly touch screen display with PLC control.
All parameters will be shown on display.
RPM/TPM & twist factor adjustment by display.
Weight & Meter set point.
Denier & twisting calculator in display.
Door location warning.
Machine lubrication warning.
A.C. drive fault alarm indication.
100 program memory storage facility.
Daily, weekly & monthly report system. (Direct save in excel format)
Two Station Pneumatic Coiling Head with 4 kg Take up Capacity, Power Req. 0.75 kw.
Wi-Fi connectivity system for computer.
In the Coiling Head Take up Capacity can be Customize up to 1 Ton.
AVAILABLE MODELS | MTP/2-E-36 | MTP/2-E-48 |
---|---|---|
Motor Capacity | 22.2 KW | 22.2 KW |
Number of Strand | 3 Ply | 4 Ply |
Number of pay off package | 2 × 3 = 6 | 2 × 4 = 8 |
Dimension (L × W × H) | 11'8" × 7'0" × 7'1" | 11'8" × 7'0" × 7'1" |
Weight (Approx.) | 3000 Kgs. | 3500 Kgs. |
ROPE SIZE | PROD. (KG/HR.) | TPM | RPM (MAX.) | GRM/MTR |
---|---|---|---|---|
2mm | 3.20 | 90.00 | 1200 | 2.00 |
3mm | 6.93 | 85.00 | 1200 | 4.09 |
4mm | 15.49 | 67.57 | 1200 | 7.27 |
5mm | 30.27 | 54.05 | 1200 | 11.36 |
6mm | 43.58 | 45.05 | 1000 | 16.36 |
