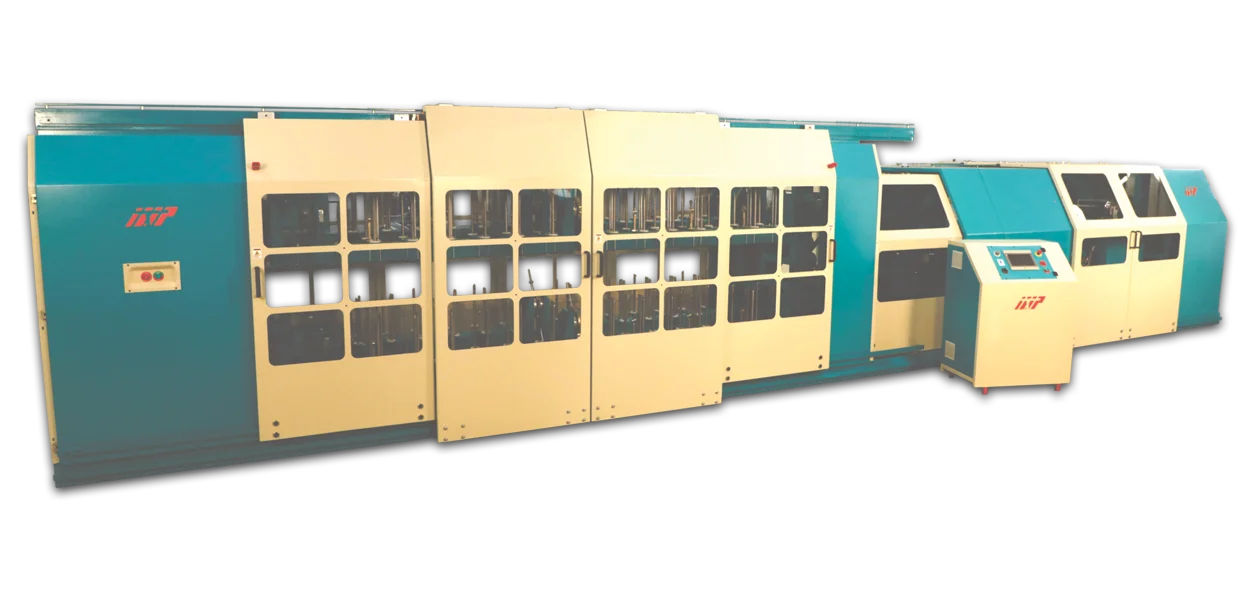

| MODEL | MTP / E-16A |
|---|---|
| ROPE RANGE | 16mm to 44mm |
| STRAND FLYER RPM | Max. 300 |
| ROPE FLYER RPM | Max. 150 |
| ROPE LAY | Z |
| TWIST RANGE | 6 to 25 TPM |
| TWIST PER MINUTE | Twice The Flyer Speed |
| TWIST IN STRAND | Adjustable |
| PAY OFF PACKAGE SIZE | 250 mm Dia. × 300 mm Tra. |
| TAKE UP CAPACITY | 200 Kgs. (Approx) |
Anti twisting unit.
Feeding capstan mechanism
User friendly touch screen display with PLC control.
All parameters will be shown on display.
RPM/TPM & twist factor adjustment by display.
Weight & Meter set point.
Direct Coiling Head
Denier & twisting calculator in display.
Door location warning.
Machine lubrication warning.
A.C. drive fault alarm indication.
100 program memory storage facility.
Daily, weekly & monthly report system. (Direct save in excel format)
Electrical Take up system
Ele. Wire hoist for removal of final package.
Wi-Fi connectivity system for computer.
Rope Lay S & Z.
| AVAILABLE MODELS | MTP/E-16A-3120 | MTP/E-16A-4160 |
|---|---|---|
| Motor Capacity | 41 KW | 41 KW |
| Number of Strand | 3 Ply | 4 Ply |
| Number of pay off package | 40 × 3 = 120 | 40 × 4 = 160 |
| Dimension (L × W × H) | 47'5" × 73" × 75" | 47'5" × 73" × 75" |
| Weight (Approx.) | 12,500 Kgs. | 13,500 Kgs. |
| SIZE | PROD. (KG/HR.) | TPM | RPM (MAX.) | GRM/MTR |
|---|---|---|---|---|
| 16mm | 124.00 kg | 16.89 | 150 | 116.36 |
| 18mm | 176.49 kg | 15.02 | 150 | 147.27 |
| 20mm | 242.25 kg | 13.51 | 150 | 181.82 |
| 22mm | 322.21 kg | 12.29 | 150 | 220.00 |
| 24mm | 418.54 kg | 11.26 | 150 | 261.82 |
| 26mm | 425.45 kg | 10.40 | 120 | 307.27 |
| 28mm | 443.14 kg | 9.65 | 100 | 356.36 |
| 30mm | 544.85 kg | 9.01 | 100 | 409.09 |
| 32mm | 660.99 kg | 8.45 | 100 | 465.45 |
| 34mm | 598.61 kg | 7.90 | 75 | 525.45 |
| 36mm | 574.16 kg | 7.50 | 60 | 589.09 |
| 38mm | 665.60 kg | 7.10 | 60 | 656.36 |
| 40mm | 641.71 kg | 6.80 | 50 | 727.27 |
| 42mm | 751.70 kg | 6.40 | 50 | 801.82 |
| 44mm | 865.57 kg | 6.10 | 50 | 880.00 |
