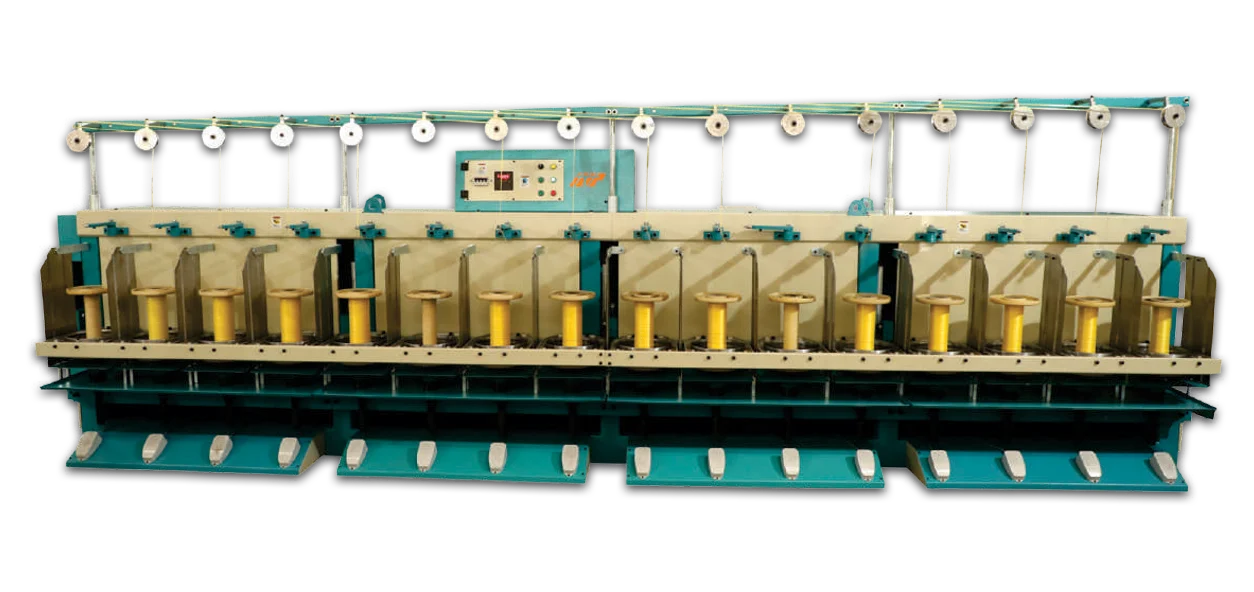

Online Ring Winder

Home     Online Ring Winder
coiling-machine

Technical Specification

MODEL MTP/ ON-RW-16/10
DENIER RANGE up to 17000
NUMBER OF SPINDLE 16 SPINDLE
SPINDLE DIA 24 MM
RING ID - 254 mm x H - 38 mm with hardened and hard chrome plated
BOLSTER 24 DIA needle roller with thrust bearing
LIFT SYSTEM REV-FWD winch type with rail motion
LIFT MOTOR 1.5 Kw
SPINDLE MOTOR 1.5 Kw with brake for each spindle
OPERATION Foot switch operated
SPINDLE BELT Nylon flat belt
SPINDLE SPEED 2800 RPM (Max.)
BOBBIN SIZE DIA-227 X TRA-300 X ID-24
WINDING TYPE Parallel winding on flanged bobbin
TOTAL POWER 25.5 Kw
DIMENSIONS (MM) L-6000 X W-1100 X H-2000
WEIGHT 3300 Kgs Approx
RING SIZE As per Customer Requirement

Key Features :

Oil Tray For Protect To Drip The Oil

Common Design For L to R or R To L Extruder

Inbuilt Traverse Control Box For Save The Space

Separate Electrical Wiring For Each Position

Single Stage Structure For Easy To Install / shift

Ring Rail Balancing By Dead Weight

Robust Designed Structure

Volt Meter On Panel

Lift Overrun Protection

Double Emergency Switch

Easy To Operate

Optional Features :

A.C. Drive Required For 18000 to 30000 Denier
