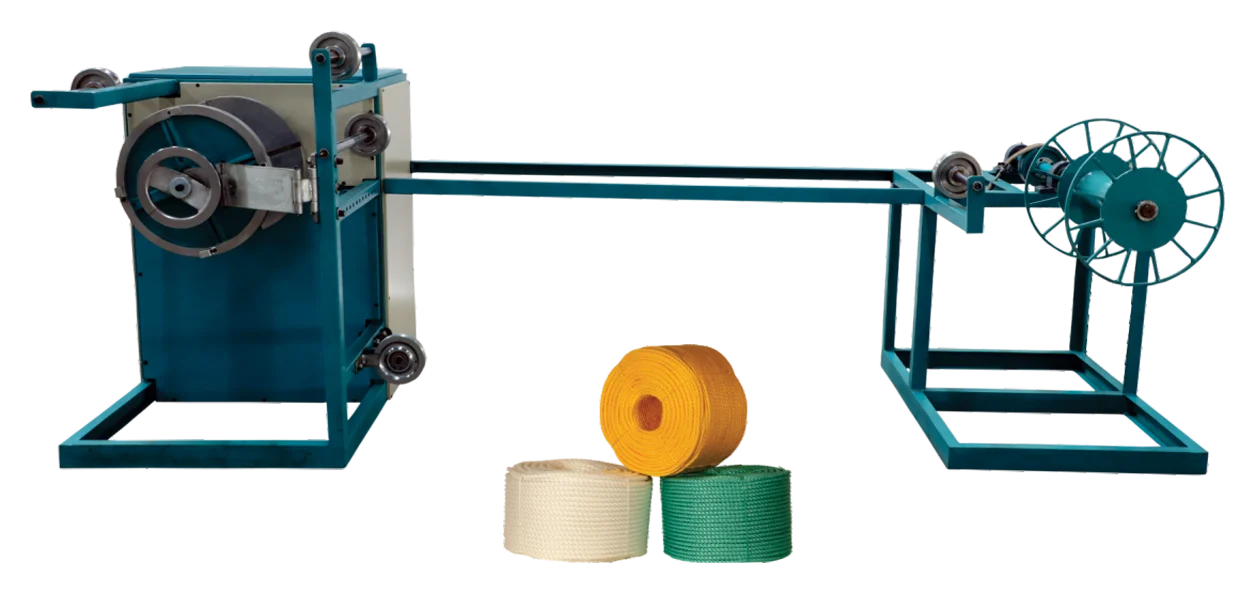

Coiling Machine MTP / CL-4

Home     Coiling Machine MTP / CL-4
coiling-machine

Technical Specification

MODEL MTP / CL-4
ROPE RANGE 4mm to 8mm
HEAD SPEED 250 RPM (Max.)
COIL WEIGHT MAX 15 Kgs.
MOTOR 1.5 KW A.C. Motor
TRAVERSE SYSTEM Auto Adjustable
DIMENSION 6'7" × 4'3" × 4'0"
WEIGHT 400 Kgs.

Key Features :

Digital length counter meter.

Easy to operate.

Layer to layer uniform winding.

Mechanical brake system for pay off bobbin.

Self adjustable traverse system

Optional Features :

A.C. frequency drive

Ele. wire hoist for removal of final package

Digital printer attachment.

Coil to Recoil mechanism.

Pneumatic head opening system
