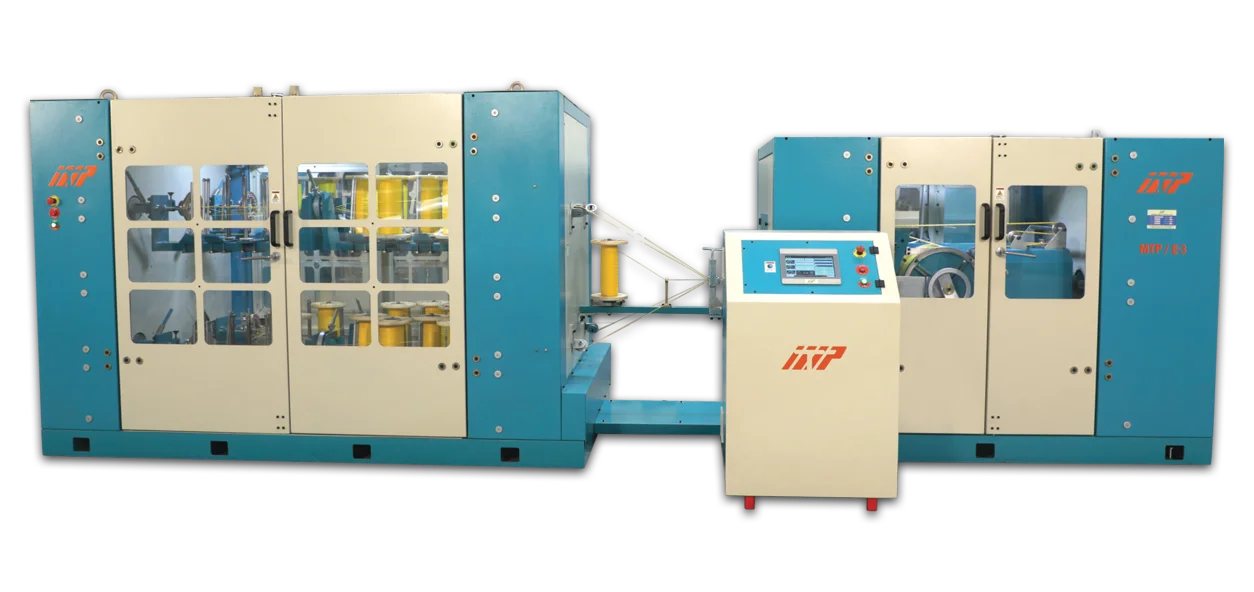

Electronic Rope Making Machine
MTP / E-3

Home     Electronic Rope Making Machine MTP / E-3
rope-making-machine

Technical Specification

MODEL MTP / E-3
ROPE RANGE 3mm to 8mm
STRAND FLYER RPM Max. 2400
ROPE FLYER RPM Max. 1200
ROPE LAY Z
TWIST PER MINUTE Twice The Flyer Speed
TWIST RANGE 30 to 100 TPM
TWIST IN STRAND Adjustable
PAY OFF PACKAGE SIZE 230 mm Dia. X 300 mm Traverse**
TAKE UP CAPACITY 15 Kgs. (Approx)

Key Features :

Anti twisting unit.

User friendly touch screen display with PLC control.

All parameters will be shown on display.

RPM/TPM & twist factor adjustment by display.

Weight & Meter set point.

Denier & twisting calculator in display.

Door location warning.

Machine lubrication warning.

A.C. drive fault alarm indication.

100 program memory storage facility.

Daily, weekly & monthly report system. (Direct save in excel format)

Direct Coiling Head

Wi-Fi connectivity system for computer.

Optional Features :

Rope Lay S & Z.

Final take up on cheese package formation.

Option : 200 mm x 200 mm, 250 mm x 250 mm 300 mm x 300mm, 350 mm x 350 mm

Electrical Take up system.

Pneumatic Spindle for Package Removal System.

Production Capacity ( On 100% Efficiency )

ROPE SIZE PROD. (KG/HR.) TPM RPM (MAX) GRM/MTR
3mm 6.93 kg 85.00 1200 04.09
4mm 15.49 kg 67.57 1200 07.27
5mm 25.22 kg 54.05 1000 11.36
6mm 30.50 kg 45.05 700 16.36
8mm 62.00 kg 33.78 600 29.09
AVAILABLE MODELS MTP/E-3-321 MTP/E-3-428
Motor Capacity 13.5 KW 17 KW
Number of Strand 3 Ply 4 Ply
Number of pay off package 7X3=21 7X4=28
Dimension (L x W x H) 19'6"x5'10"x7'6" 19'6"x5'10"x7'6"
Weight (Approx.) 4600Kgs. 5000Kgs.
