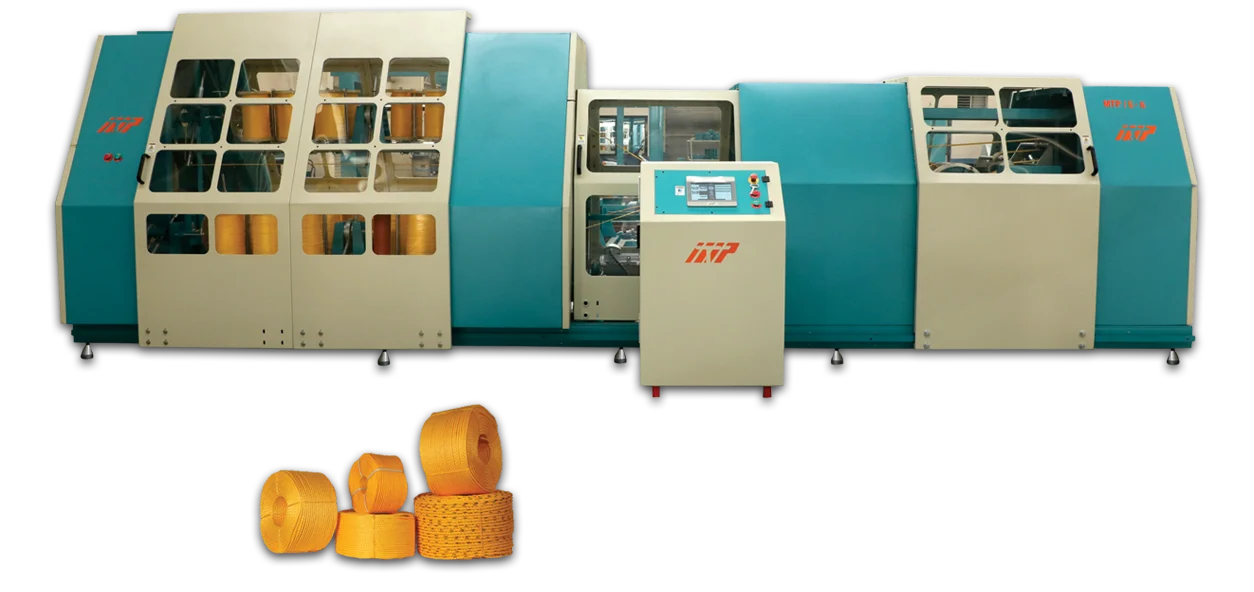

| MODEL | MTP / E-6 |
|---|---|
| ROPE RANGE | 6mm to 12mm |
| STRAND FLYER RPM | Max. 1000 |
| ROPE FLYER RPM | Max. 500 |
| ROPE LAY | Z |
| TWIST PER MINUTE | Twice The Flyer Speed |
| TWIST RANGE | 13 to 63 TPM |
| TWIST IN STRAND | Adjustable |
| PAY OFF PACKAGE SIZE | 250 mm Dia. X 300 mm Tra. |
| TAKE UP CAPACITY | 25 Kgs. (Approx) |
Anti twisting unit.
User friendly touch screen display with PLC control.
All parameters will be shown on display.
RPM/TPM & twist factor adjustment by display.
Weight & Meter set point.
Denier & twisting calculator in display.
Door location warning.
Machine lubrication warning.
A.C. drive fault alarm indication.
100 program memory storage facility.
Daily, weekly & monthly report system. (Direct save in excel format)
Direct Coiling Head
Wi-Fi connectivity system for computer.
Feeding capstan mechanism.
Rope Lay S & Z.
| ROPE SIZE | PROD. (KG/HR.) | TPM | RPM (MAX) | GRM/MTR |
|---|---|---|---|---|
| 6mm | 21.79 kg | 45.05 | 500 | 16.36 |
| 8mm | 51.67 kg | 33.38 | 500 | 29.09 |
| 10mm | 90.80 kg | 27.03 | 450 | 45.45 |
| 12mm | 139.50 kg | 22.52 | 400 | 65.45 |
| AVAILABLE MODELS | MTP/E-6-336 | MTP/E-6-448 |
|---|---|---|
| Motor Capacity | 13.5 KW | 17 KW |
| Number of Strand | 3 Ply | 4 Ply |
| Number of pay off package | 12 X 3 = 36 | 12 X 4 = 48 |
| Dimension (L x W x H) | 23'9" x 7'1" x 7'5" | 23'9" x 7'1" x 7'5" |
| Weight (Approx.) | 4000 Kgs. | 4310 Kgs. |
