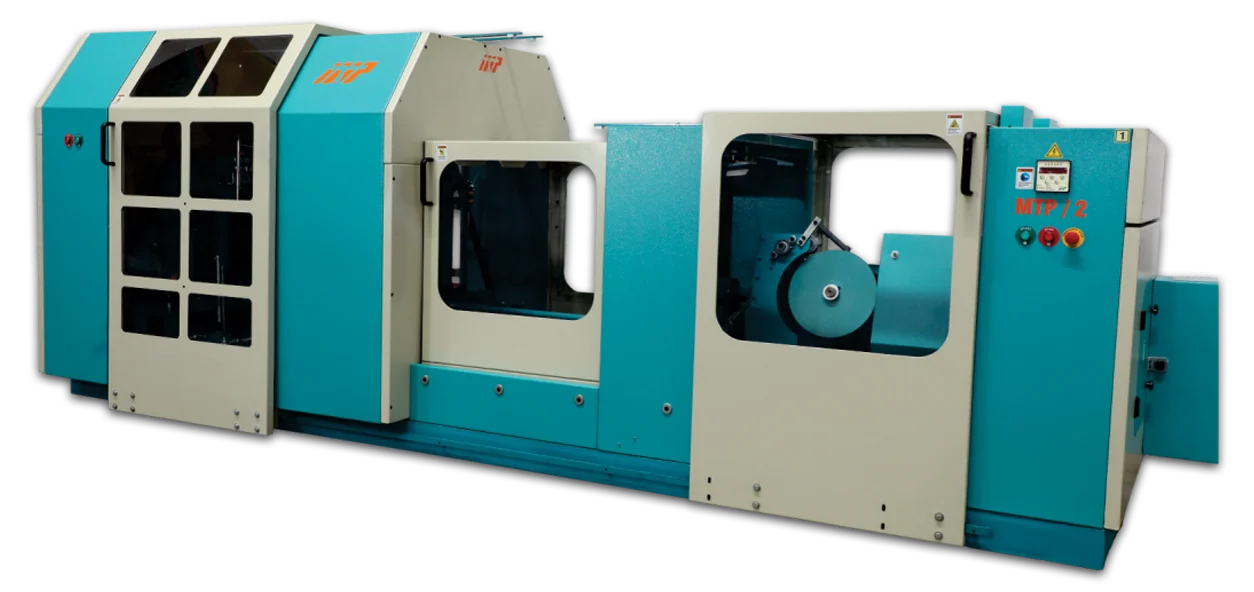

| MODEL | MTP/2A |
|---|---|
| ROPE RANGE | 2 mm to 5 mm |
| STRAND FLYER RPM | Max. 2800 |
| ROPE FLYER RPM | Max. 1400 |
| TWIST PER MINUTE | Twice The Flyer Speed |
| ROPE LAY | Z |
| TWIST RANGE | 40 to 150 TPM |
| PAY OFF PACKAGE SIZE | 250 mm Dia. X 300 mm Tra. |
| TAKE UP CAPACITY | 7 Kgs. (Approx) |
Power transmission by timing belts.
Auto stop after yarn breakage to control wastage.
Digital length counter meter.
Door sensor.
Take up output on M.S. bobbin.
A.C. frequency drive.
Rope Lay S & Z
| ROPE SIZE | PROD. (KG/HR.) | RPM (MAX) | TPM | GRM/MTR |
|---|---|---|---|---|
| 2mm | 3.73 kg | 1400 | 90.00 | 2.00 |
| 3mm | 8.08 kg | 1400 | 85.00 | 4.09 |
| 4mm | 16.78 kg | 1300 | 67.57 | 7.27 |
| 5mm | 30.27 kg | 1200 | 54.05 | 11.36 |
| AVAILABLE MODELS | MTP/2A-33 | MTP/2A-44 |
|---|---|---|
| Motor Capacity | 5.6 KW | 7.5 KW |
| Number of Strand | 3 Ply | 4 Ply |
| Number of pay off package | 1 × 3 = 3 | 1 × 4 = 4 |
| Dimension (L × W × H) | 10'9" × 4'6" × 4'8" | 10'9" × 4'6" × 4'8" |
| Weight (Approx.) | 1,000 kgs. | 1200 Kgs. |
