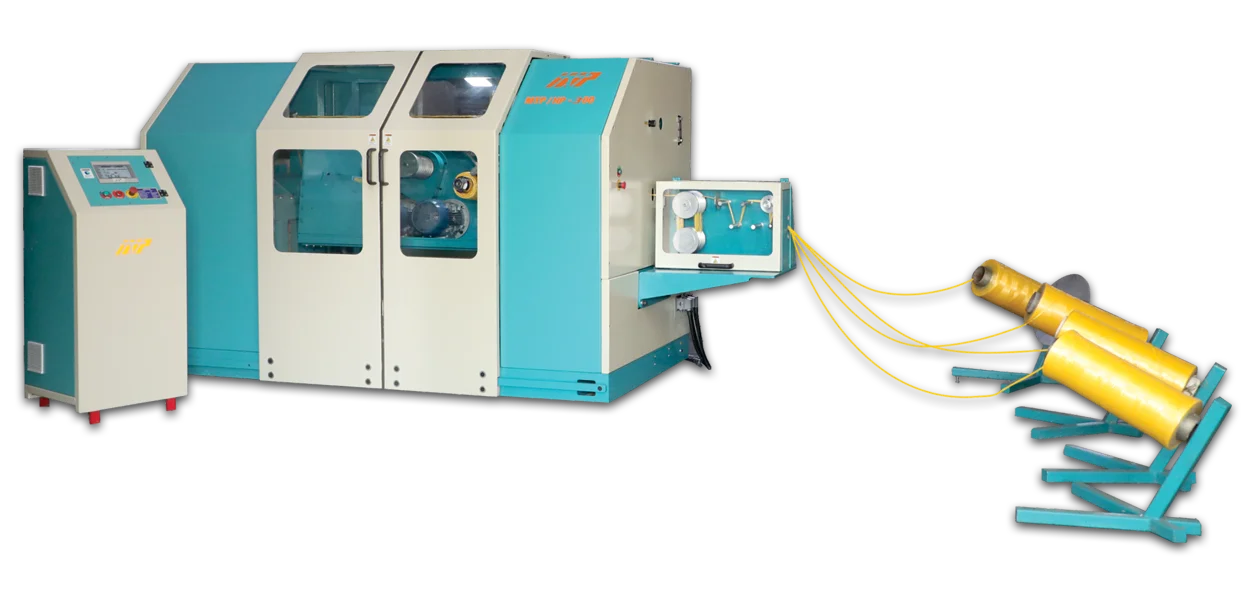

Inflow Twister MTP / HP-300

Home     Inflow Twister MTP / HP-300
inflow-twister-mtp-hp-300

Technical Specification

MODEL MTP/HP-300
DENIER RANGE 25,000 TO 3,00,000
FLYER SPEED 1000 RPM MAX
TWIST PER MINUTS TWICE THE FLYER SPEED
TPM RANGE 12 TO 80 TPM
FINAL PACKAGE SIZE 500 MM DIA. X 500 MM TRA. X 110MM ID
WINDING TYPE CROSS WINDING
PACKAGE WITHOUT TUBE (COLLAPSIBLE SPINDLE)
POWER 13 KW
TWIST DIRECTION S & Z
FEEDING CAPSTAN HYDRAULIC CONTROLLED
WEIGHT 2400 KGS
DIMENSIONS L-11' 8" X W- 5' 6" X H 6'0"

Key Features :

Rope Icon

User Friendly touch screen display with PLC Control.

Rope Icon

TPM & RPM adjustment by touch screen display

Rope Icon

Winding tension adjustment by touch screen display

Rope Icon

Pitch adjustment system

Rope Icon

Predetermined length set point

Rope Icon

Auto stop at yarn breakage

Rope Icon

Power transmission by timing belts

Rope Icon

AC frequency drives for all motors

Rope Icon

Precision cross winding for final package

Rope Icon

Hydraulic feeding capstan system

Rope Icon

All parameters will be shown on display.

Rope Icon

Production data can be stored to analyse & review.

Rope Icon

Daily, Weekly & Monthly report system. (Direct save in excel format)

Rope Icon

Wi-Fi connectivity system for Computer.

Rope Icon

Common Spindle for both type of package i.e. with tube and without tube package.

DENIER PROD. (KG/HR.) RPM (MAX) TPM
50,000 33.33 kg 1000 20
1,00,000 60.00 kg 900 20
1,50,000 88.89 kg 800 18
2,00,000 103.70 kg 700 18
2,50,000 133.34 kg 600 15
3,00,000 133.32 kg 500 15

Note: ALSO AVAILABLE MODELS : MTP / HP-200 UP TO 2,00,000 DENIER
