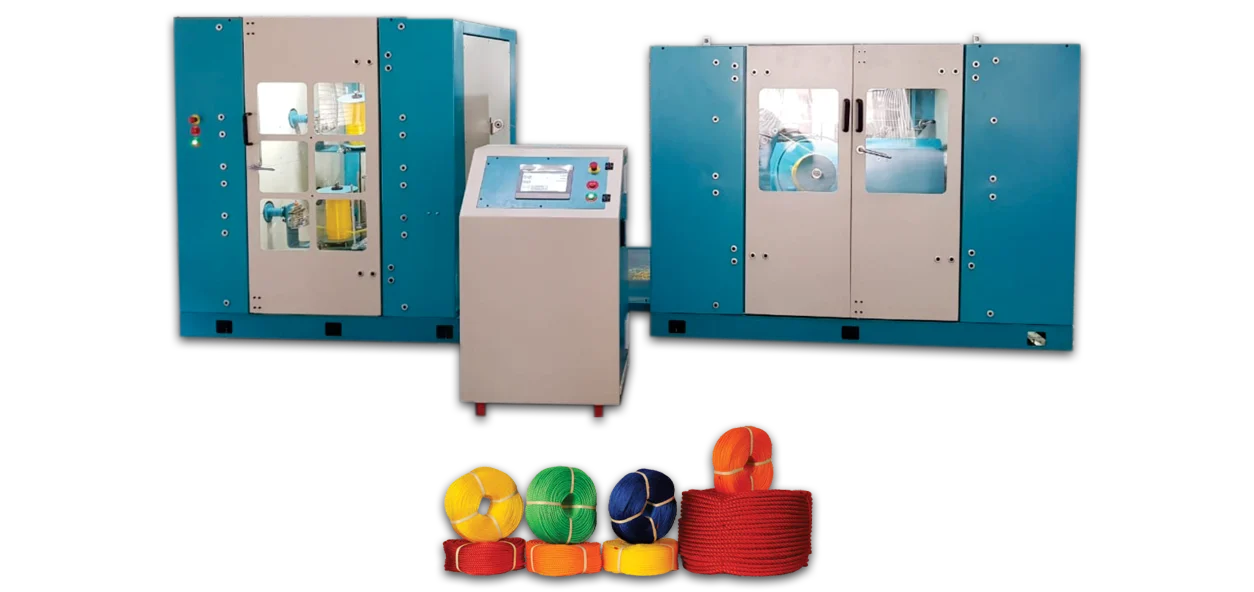

MODEL | MTP / E-2 |
---|---|
ROPE RANGE | 2mm to 6mm |
STRAND FLYER RPM | Max. 3000 |
ROPE FLYER RPM | Max. 1500 |
ROPE LAY | Z |
TWIST PER MINUTE | Twice The Flyer Speed |
TWIST RANGE | 40 to 150 TPM |
TWIST IN STRAND | Adjustable |
PAY OFF PACKAGE SIZE |
250mm Dia. X 300 mm Tra. (3 Packages per Ply) 400mm Dia. X 300mm Tra. (2 packages per Ply) |
TAKE UP CAPACITY | 12 Kgs. (Approx) |
User friendly touch screen display with PLC control.
All parameters will be shown on display.
RPM/TPM & twist factor adjustment by display.
Weight & Meter set point.
Denier & twisting calculator in display.
Door location warning.
Machine lubrication warning.
A.C. drive fault alarm indication.
100 program memory storage facility.
Daily, weekly & monthly report system. (Direct save in excel format)
Direct Coiling Head
Wi-Fi connectivity system for computer.
Rope Lay S & Z.
Final take up on cheese package formation. Option : 200 mm x 200 mm, 250 mm x 250 mm, 300 mm x 300mm, 350 mm x 350 mm
Electrical Take up system.
Pneumatic Spindle for Package Removal System.
ROPE SIZE | PRODUCTION (KG/HR.) | TPM | RPM (MAX) | GRM/MTR |
---|---|---|---|---|
2 mm | 4.00 kg | 90.00 | 1500 | 2.00 |
3 mm | 7.80 kg | 85.00 | 1350 | 4.09 |
4 mm | 15.49 kg | 67.57 | 1200 | 7.27 |
5 mm | 25.22 kg | 54.05 | 1000 | 11.36 |
6 mm | 39.23 kg | 45.04 | 900 | 16.36 |
AVAILABLE MODELS | MTP/E-2-39 | MTP/E-2-412 |
---|---|---|
Motor Capacity | 13 KW | 15 KW |
Number of Strand | 3 Ply | 4 Ply |
Number of pay off package | 3 x 3 = 9 | 3 x 4 = 12 |
Dimension (L x W x H) | 16'6"x4'9"x5'9" | 16'6"x4'9"x5'9" |
Weight (Approx.) | 3400Kgs. | 3700Kgs. |
