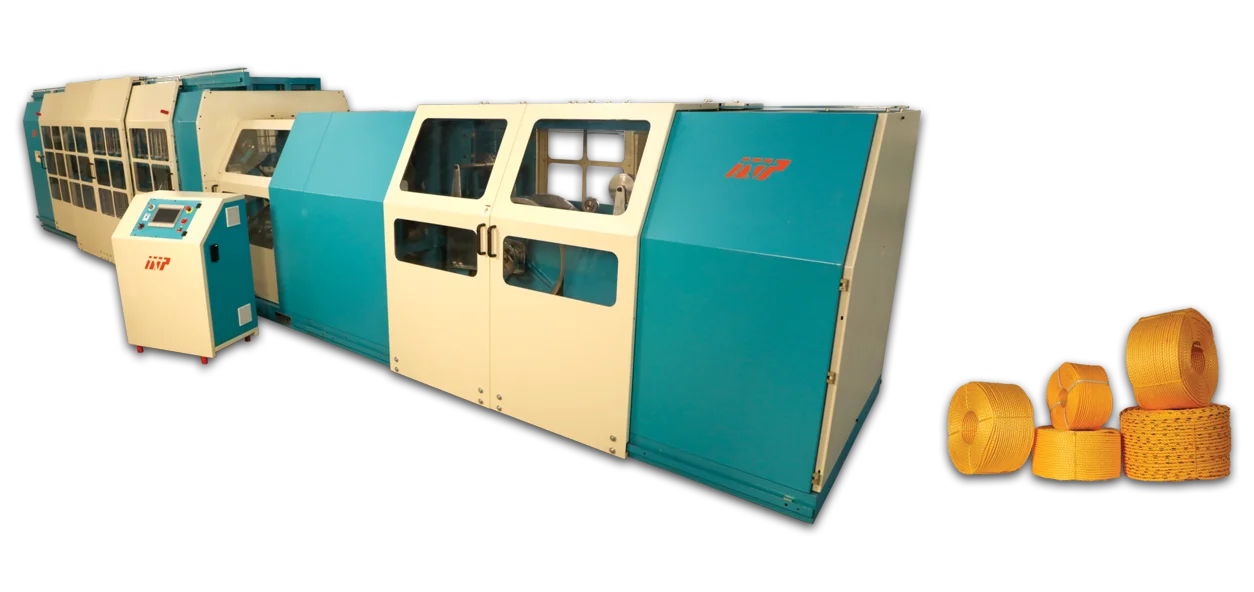

| MODEL | MTP/E-16 |
|---|---|
| ROPE RANGE | 16mm to 40mm |
| STRAND FLYER RPM | Max. 350 |
| ROPE FLYER RPM | Max.175 |
| TWIST RANGE | 6 to 25 TPM |
| TWIST PER MINUTE | Twice The Flyer Speed |
| ROPE LAY | Z |
| PAY OFF PACKAGE SIZE | 250 mm Dia. × 300 mm Tra. |
| TAKE UP CAPACITY | 175 Kgs. (Approx) |
Anti twisting unit.
Feeding capstan mechanism
User friendly touch screen display with PLC control.
All parameters will be shown on display.
RPM/TPM & twist factor adjustment by display.
Weight & Meter set point.
Direct Coiling Head
Denier & twisting calculator in display.
Door location warning.
Machine lubrication warning.
A.C. drive fault alarm indication.
100 program memory storage facility.
Daily, weekly & monthly report system. (Direct save in excel format)
Electrical Take up system
Ele. Wire hoist for removal of final package.
Wi-Fi connectivity system for computer.
Rope Lay S & Z.
| AVAILABLE MODELS | MTP/E16-396 | MTP/E16-4128 |
|---|---|---|
| Motor Capacity | 41 KW | 41 KW |
| Number of Strand | 3 Ply | 4 Ply |
| Number of pay off package | 32 × 3 = 96 | 32 × 4 = 128 |
| Dimension (L × W × H) | 40'5" × 7'3" × 7'5" | 40'5" × 7'3" × 7'5" |
| Weight (Approx.) | 12,500 Kgs. | 13,100 Kgs. |
| SIZE | PROD. (KG/HR.) | TPM | RPM (MAX.) | GRM/MTR |
|---|---|---|---|---|
| 14mm | 96.88 kg | 19.31 | 175 | 89.09 |
| 16mm | 144.67 kg | 16.89 | 175 | 116.36 |
| 18mm | 205.90 kg | 15.02 | 175 | 147.27 |
| 20mm | 242.25 kg | 13.51 | 150 | 181.82 |
| 22mm | 322.21 kg | 12.29 | 150 | 220.00 |
| 24mm | 418.54 kg | 11.26 | 150 | 261.82 |
| 26mm | 425.45 kg | 10.40 | 120 | 307.27 |
| 28mm | 443.14 kg | 9.65 | 100 | 356.36 |
| 30mm | 544.85 kg | 9.01 | 100 | 409.09 |
| 32mm | 660.99 kg | 8.45 | 100 | 465.45 |
| 34mm | 598.61 kg | 7.90 | 75 | 525.45 |
| 36mm | 584.37 kg | 7.50 | 62 | 589.09 |
| 38mm | 668.95 kg | 7.10 | 62 | 656.36 |
| 40mm | 641.71 kg | 6.80 | 50 | 727.27 |
