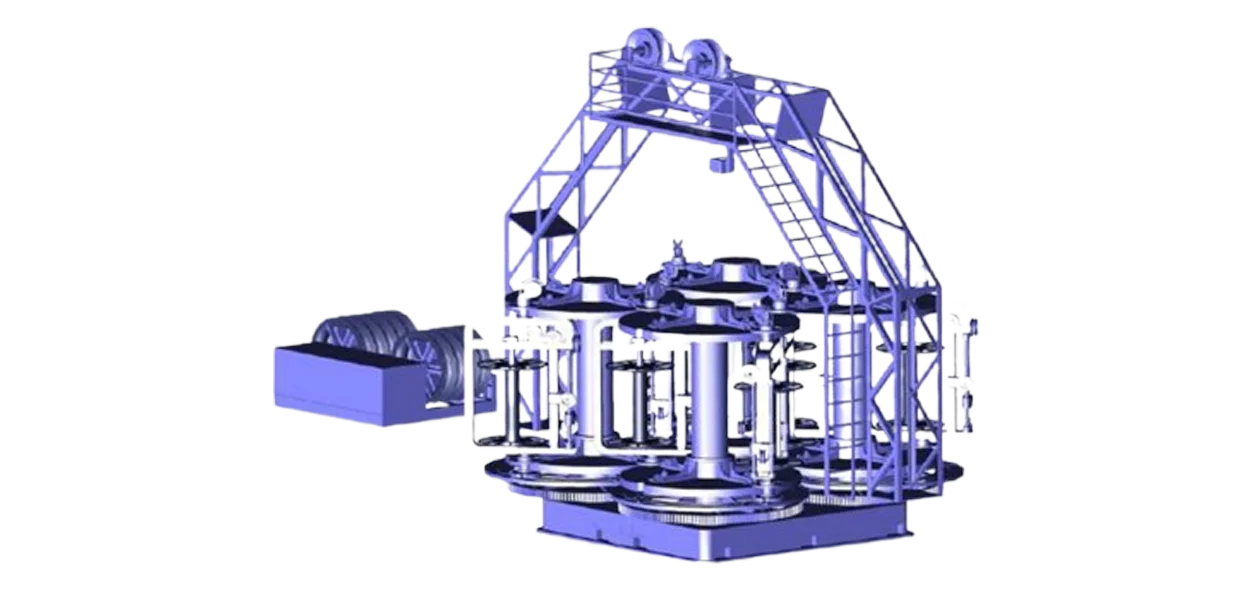

MTP / BR-120

Home     MTP / BR-120
mtp-br-120

Technical Specification

Rope Range 48 mm to 120 mm
Pitch Size 1800 mm
Bobbin Size 950 mm TRA X 750 mm Dia
Strand Bobbin Capacity 180 Kgs
Carriers Type Vertical Bobbin
Braid Length 90 mm to 500 mm
Horn RPM 16Max
Dimension L-14.5 mtr. x W-5 mtr x H-6 mtr. (Horn Asse with Take Up)
Weight of Machine 50,000 Kgs.
Motor Power 13.5 KW

Key Features :

User Friendly Touch Screen Display.

All Parameters will be Shown on Display.

Braid Length Adjustment by Display.

Meter Set Point for Desired Length.

Auto Stoppage at Empty Bobbin.

Stepless Variable Synchronized Speed Control.

Machine with Fenced Guard.

Helical Gear Box.

Machine Lubrication Wearing.

Daily, Weekly & Monthly report system. (Direct Save in Excel Format)

Wi-Fi Connectivity System for Computer.

Optional Features :

Horn Gear and Horn Flanges are in steel Material

Double Stage Foundation Base.

Heavy Duty Needle and Trust bearings are in Horn Assembly.

Vertical Bobbin Mounting Provision.

Heard Chrome Plated Guide Pulleys.
