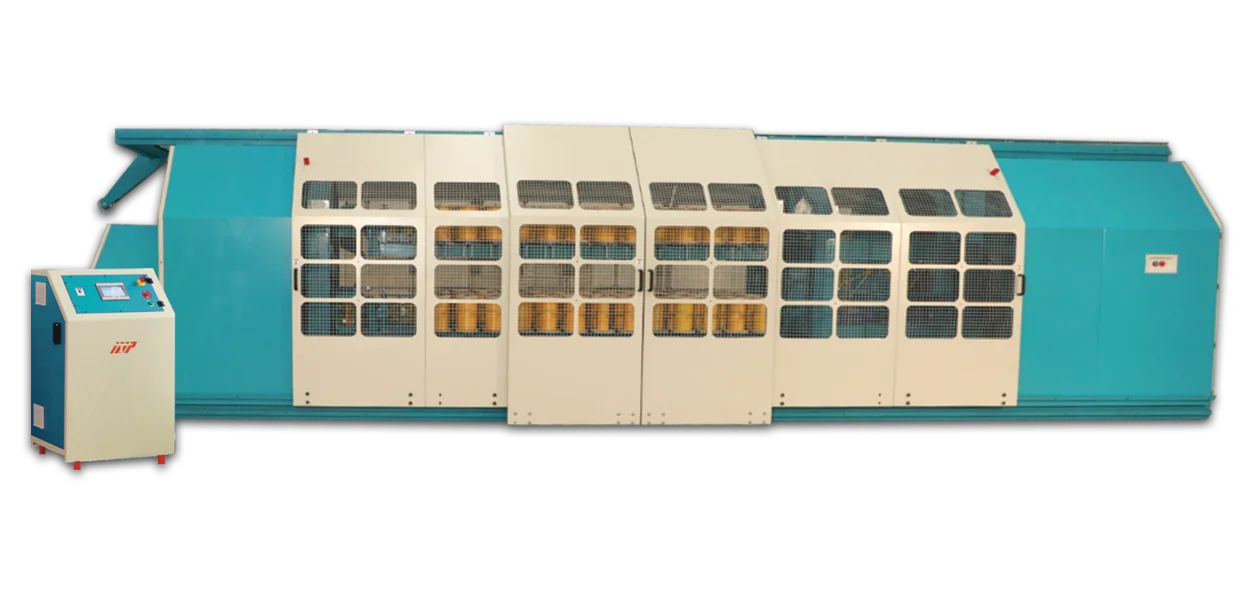

| MODEL | MTP / 16A-E |
|---|---|
| ROPE RANGE | 16mm to 44mm |
| ROPE FLYER RPM | Max.150 |
| TWIST PER MINUTE | Twice The Flyer Speed |
| ROPE LAY | Z |
| TWIST RANGE | 6 to 25 TPM |
| TWIST IN STRAND | Adjustable |
| PAY OFF PACKAGE SIZE | 250 mm Dia. X 300 mm Tra. |
| TAKE UP CAPACITY | Infinite |
User friendly touch screen display with PLC control.
All parameters will be shown on display.
RPM/TPM & twist factor adjustment by display.
Weight & Meter set point.
Denier & twisting calculator in display.
Door location warning.
Machine lubrication warning.
A.C. drive fault alarm indication.
100 program memory storage facility.
Daily, weekly & monthly report system. (Direct save in excel format)
Wi-Fi connectivity system for computer.
One / Two head coiling machine.
Digital printer attachment
Ele. wire hoist for removal of final package.
Rope Lay S & Z
| AVAILABLE MODELS | MTP/16A-E-4160 |
|---|---|
| Motor Capacity | 45 KW |
| Number of Strand | 4 Ply |
| Number of pay off package | 40 x 4 = 160 |
| Dimension (L x W x H) | 5'0" x 8'3" x 7'5" |
| Weight (Approx.) | 16000 Kgs. |
| ROPE SIZE | PROD. (KG/HR.) | TPM | RPM (MAX.) | GRM/MTR |
|---|---|---|---|---|
| 16mm | 82.67 kg | 16.89 | 100 | 116.36 |
| 18 mm | 117.64 kg | 15.02 | 100 | 147.27 |
| 20mm | 161.50 kg | 13.51 | 100 | 181.82 |
| 22mm | 214.81 kg | 12.29 | 100 | 220.00 |
| 24mm | 209.27 kg | 11.26 | 75 | 261.82 |
| 26mm | 265.91 kg | 10.40 | 75 | 307.27 |
| 28mm | 332.36 kg | 9.65 | 75 | 356.36 |
| 30mm | 408.64 kg | 9.01 | 75 | 409.09 |
| 32mm | 429.65 kg | 8.45 | 65 | 465.45 |
| 34mm | 438.98 kg | 7.90 | 55 | 525.45 |
| 36mm | 518.40 kg | 7.50 | 55 | 589.09 |
| 38mm | 499.20 kg | 7.10 | 45 | 656.36 |
| 40mm | 449.20 kg | 6.80 | 35 | 727.27 |
| 42mm | 526.19 kg | 6.40 | 35 | 801.82 |
| 44mm | 605.90 kg | 6.10 | 35 | 880.00 |
