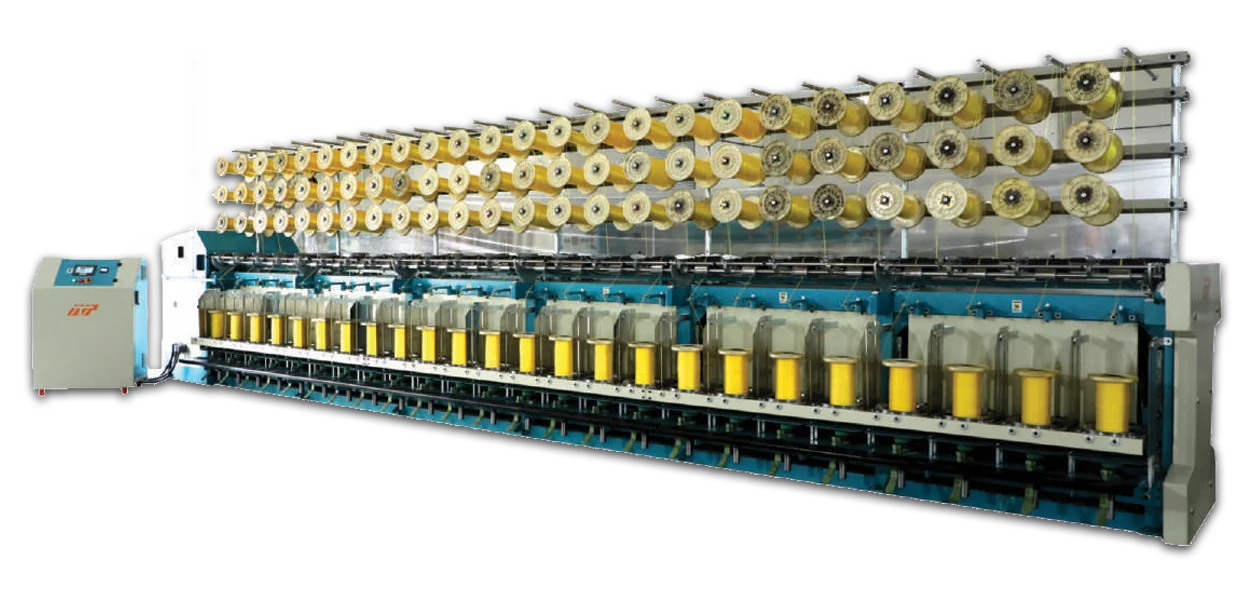

Offline Ring Twister

Home     Offline Ring Twister
offline-ring-twister

Technical Specification

NO OF SPINDLES 48 Spindles
RING AND GUAGES 10" X 1.5" Ring And 14" Guage
RING HOLDER Aluminium Holder With Individual Oil Pot Provided
TWIST RANGE 20 Tpm To 80 Tpm
DIRECTION OF TWIST S&Z Direction Change Over Switch Provided
SPINDLE & BOLSTER Heavy Duty 24mm Dia Spindle With Bolsters of Dia. 24mm
LIFT 12" Lift With CI Body, 4 Bearing Slide System Driven By 2 Hp Gear Motor
DELIVERY ROLLERS 75mm Dia Twin Roller With Hard Chrome And Dual Bearing System
TOP ROLLERS Rubber Coated Top Rollers With Lifting Handle
ROLLER STAND 4 Ball Bearing Stand With 2 Bottom Rollers And 1 Extra Width Rollers
TRAVERSE Ceramic Mounted Flat Bars For Thread Guide With 50mm Traverse By Worm And Wormwheel Gear System.
DRIVING PULLEY 10" Dia Alluminium Pulley For 2 Spindle Drive System
TENSION PULLEY 78mm Jockey Pulley With Tension Spring System, 2 Spindle Drive
CREEL Main Creel Mounted on Top of The Machine and Pipe Provided on Top Row For Proper Yarn Tension
SEPERATOR S.S. Sheet Provided For Each Spindle And Easily Removable
LAPPET Tilting Type CI Body With Ss Hook Fitted.
ELECTRICAL Spindle Driven By 20hp Motor. 2nos 3hp Motor & Reduction Gear Box For Delivery Rollers. 1 Nos 2hp Motor With Helical Gear Box For Lifting. All Motors Synchronised With Plc Control Panel Board. TPM, RPM, Reverse & Forward Switch System Provided In Touch Screen Display Panel. All Parameters Settings By HMI Display. Overload Relay, Amps Mit, Volts Mit, Hour Mit Provided In Panel. Motors-rotomotive/C & G Make. Gear Box-bonfiglioli Make.
MACHINE SIZE 32ft. Length X 6ft. Width x 8ft. Height.
SPINDLE SPEED 2800 RPM (Max.)
RING SIZE As per Customer Requirement

Key Features :

Rope Icon

High Speed Ring Twister Machine For Best Yarn Quality With High Productivity.

Rope Icon

Innovative Structure Design With Ready To Use. No Assembling Is Required.

Rope Icon

Tpm Setting By Hmi Display, No Need For Any Mechanical Changes.

Rope Icon

S & Z Twist Direction By Change Over Switch.

Rope Icon

Easy To Operate.

Rope Icon

Less Noisy, Power Cost Saving.

Rope Icon

Zero Vibration And Zero Maintainance.
