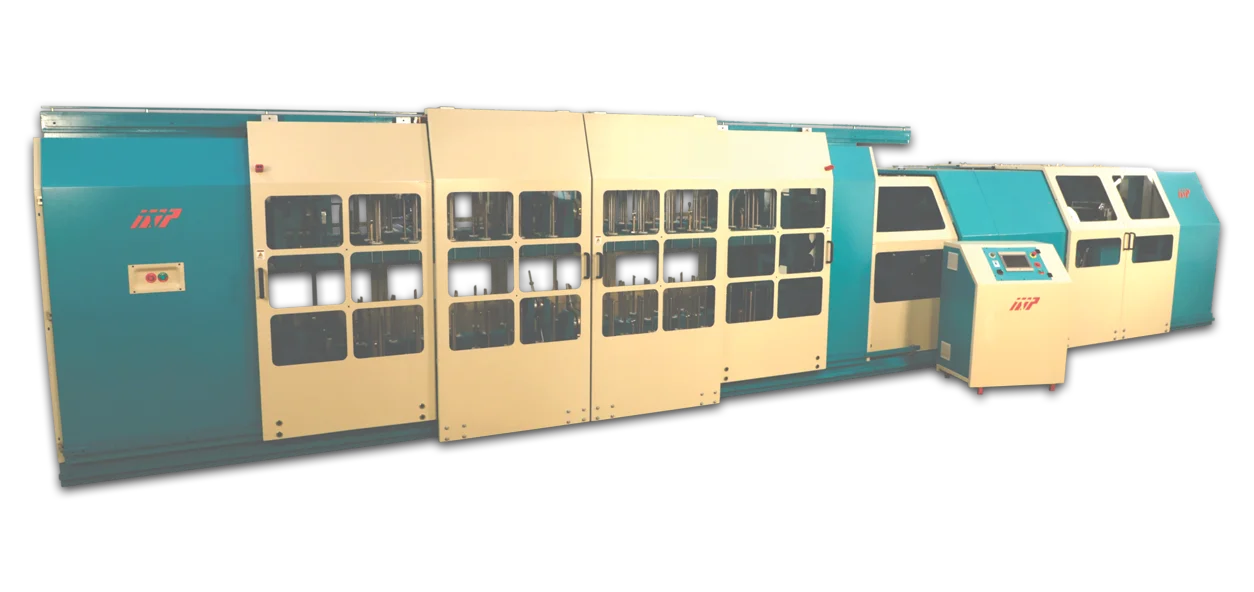

| MODEL | MTP / E-12A |
|---|---|
| ROPE RANGE | 12mm to 32mm |
| STRAND FLYER RPM | Max. 450 |
| ROPE FLYER RPM | Max. 225 |
| TWIST RANGE | 6 to 30 TPM |
| TWIST PER MINUTE | Twice The Flyer Speed |
| ROPE LAY | Z |
| TWIST IN STRAND | Adjustable |
| PAY OFF PACKAGE SIZE | 250 mm Dia. × 300 mm Tra. |
| TAKE UP CAPACITY | 132 Kgs. (Approx) |
Anti twisting unit.
Feeding capstan mechanism
User friendly touch screen display with PLC control.
All parameters will be shown on display.
RPM/TPM & twist factor adjustment by display.
Weight & Meter set point.
Direct Coiling Head
Denier & twisting calculator in display.
Door location warning.
Machine lubrication warning.
A.C. drive fault alarm indication.
100 program memory storage facility.
Daily, weekly & monthly report system. (Direct save in excel format)
Electrical Take up system
Ele. Wire hoist for removal of final package.
Wi-Fi connectivity system for computer.
Rope Lay S & Z.
| AVAILABLE MODELS | MTP/E-12A-378 | MTP/E-12A-4104 |
|---|---|---|
| Motor Capacity | 32 KW | 32 KW |
| Number of Strand | 3 Ply | 4 Ply |
| Number of pay off package | 26 × 3 = 78 | 26 × 4 = 104 |
| Dimension (L × W × H) | 38" × 7'3" × 7'5" | 38" × 7'3" × 7'5" |
| Weight (Approx.) | 9200 Kgs. | 9800 Kgs. |
| ROPE SIZE | PROD. (KG/HR.) | TPM | RPM | GRM/MTR |
|---|---|---|---|---|
| 12mm | 78.47 kg | 22.5 | 225 | 065.45 |
| 14mm | 124.57 kg | 19.3 | 225 | 089.09 |
| 16mm | 165.34 kg | 16.9 | 200 | 116.36 |
| 18mm | 235.32 kg | 15.0 | 200 | 147.27 |
| 20mm | 282.62 kg | 13.5 | 175 | 181.82 |
| 22mm | 375.92 kg | 12.3 | 175 | 220.00 |
| 24mm | 417.05 kg | 11.3 | 150 | 261.82 |
| 26mm | 460.91 kg | 10.4 | 130 | 307.27 |
| 28mm | 484.94 kg | 09.7 | 110 | 356.36 |
| 30mm | 599.33 kg | 09.0 | 110 | 409.09 |
| 32mm | 620.60 kg | 09.0 | 100 | 465.45 |
